Excel 365 Reference

This page explains high-impact Excel 365 workflows for engineering data preparation, validation, and reporting.

This reference is intentionally basic-level. It focuses on day-to-day CSV cleanup, schedule preparation, and print-ready outputs for CAD/GIS projects.

What This Page Covers

• Interface overview.
• Must-know basics to get started.
• Must-know basic settings for reliable engineering sheets.
• High-impact formula and feature cards with examples.
• Simple practical workflows for survey and schedule use cases.

What Excel Is

Excel is a spreadsheet tool used for calculation, tabular data management, validation, and reporting. It is the fastest way to clean and verify survey or quantity data before CAD or GIS use.

Typical use cases:

• Room and opening schedules.
• Survey point checks.
• Quantity calculations.
• Lookup and data standardization.

In this training context, the highest-value capabilities are Table formatting, text cleanup, lookup functions, duplicate checks, Freeze Panes, and Page Setup.

Overview of the Interface

The interface elements below are the most useful for beginner spreadsheet operations in engineering workflows:

1. Quick Access Toolbar: one-click Save, Undo, Redo for fast repetitive work.
2. Ribbon Tabs: Home, Insert, Formulas, Data, View, Page Layout are used most often.
3. Formula Bar: read and edit formulas safely before applying across rows.
4. Name Box: confirms active cell reference and helps fast navigation.
5. Worksheet Grid: core working area for records and fields.
6. Sheet Tabs: separate raw input, cleaned data, lookups, and output sheets.
7. Status Bar and Zoom: quick SUM/COUNT checks and zoom control for review.

Must-Know Basics to Get Started

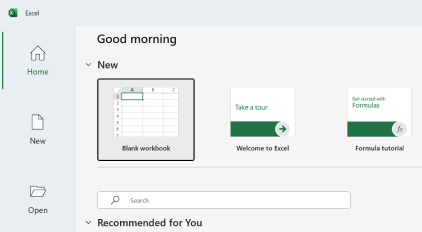

1. Start with a clean workbook and immediately save it in the project folder.
2. Keep one record per row and one field per column.
3. Add clear headers in row 1 with explicit units, for example Elevation_m.
4. Convert your range to a table early (Ctrl+T) so filters and structured references are available.
5. Keep raw input and processed output in separate sheets.
6. Use consistent data types in each column, numbers as numbers and text as text.
7. Freeze the header row before long-table review.
8. Use Find and Replace for controlled naming standardization.
9. Avoid merged cells in data sheets.
10. Test formulas on a few rows, then fill down.

Must-Know Basic Configuration

Setting area	Workshop default	Why it matters
Calculation mode	Automatic (Formulas > Calculation Options)	Ensures totals update immediately after edits
Regional separators	Keep decimal and thousands separators consistent across team	Prevents numeric parsing errors after CSV import/export
Number formats	Use explicit formats for coordinates, elevation, quantities	Avoids hidden rounding and mixed-type issues
Table setup	Convert working range to Table (Ctrl+T) and name it clearly	Enables stable filters and readable formulas
Freeze panes	Freeze Top Row for long datasets (View > Freeze Panes)	Keeps headers visible during validation
Page setup	A4, correct orientation, margins, and scaling (Page Layout)	Produces readable print/PDF outputs
Print titles	Repeat header row on each page (Page Layout > Print Titles)	Prevents unreadable multi-page reports
File versioning	Save in OneDrive-synced project folder	Supports rollback and collaboration

Core Concepts in Simple Terms

• Row: one record.
• Column: one field.
• Cell: intersection of row and column.
• Formula: rule that calculates a value.
• Table: structured range with filter and sort controls.

High-Impact Formula and Feature Cards

Formula or feature	Purpose	Usage example	Practical tip	Must-know options	Common mistake
Basic math (+, -, *, /, ^, SQRT)	Calculate totals, differences, and derived quantities	=C2*D2 for area, =SQRT(E2) for checks	Keep formula columns separate from raw input columns	Use absolute refs like $H$2 for constants	Mixing units (mm and m) in same calculation
ROUND	Standard decimal control	=ROUND(E2,2)	Round only final output columns, not source measurements	Second argument is digits	Rounding too early and accumulating error
MROUND	Round to nearest step value	=MROUND(E2,0.05)	Use for standard increments, such as 0.05 m	Step value must match reporting rule	Using wrong step size for project standard
CEILING	Round up to a step	=CEILING(E2,0.1)	Use for conservative upper estimates	Prefer CEILING/CEILING.MATH in 365	Using it when nearest rounding is expected
FLOOR	Round down to a step	=FLOOR(E2,0.1)	Use for conservative lower estimates	Step must be positive and explicit	Applying floor to values that must not be underestimated
INDEX + MATCH	Lookup from flexible columns	=INDEX(RateTbl[Rate],MATCH([@Type],RateTbl[Type],0))	More robust than fixed-column lookups	MATCH(...,0) for exact match	Omitting exact match and returning wrong row
CONCAT	Join text fields	=CONCAT([@Block],"-",[@RoomNo])	Build stable IDs for CAD/GIS labels	Combine with TRIM before concat	Joining dirty text with hidden spaces
TRIM	Remove extra spaces in text	=TRIM(A2)	Use immediately after CSV import for code/name columns	Apply to lookup keys first	Assuming visual spaces are the only spaces
LEFT	Extract leading characters	=LEFT([@PointID],3)	Useful for zone/type prefixes	Second argument controls length	Using fixed length when source format varies
RIGHT	Extract trailing characters	=RIGHT([@PointID],2)	Useful for suffix-based grouping	Validate suffix length first	Pulling wrong characters after inconsistent IDs
MID	Extract middle portion by position	=MID([@PointID],4,3)	Use when IDs have stable pattern	Start position is 1-based	Off-by-one start index
TEXTSPLIT	Split composite text into fields	=TEXTSPLIT(A2,"_")	Ideal for imported IDs such as BLK01_ROOM02_W1	Delimiter can be one or multiple characters	Using wrong delimiter and shifting columns
COUNTIF for duplicates	Identify duplicate IDs/codes	=COUNTIF(A:A,A2)>1	Add a helper flag column and filter TRUE values	Use exact same normalized key column	Checking duplicates before text cleanup
UNIQUE	Extract unique values	=UNIQUE(Table1[Code])	Build controlled code lists for validation	Works as dynamic spill range in 365	Overwriting spill area with manual values
Find and Replace	Bulk text standardization	Replace rm with Room in code column	Scope replace to selected column when needed	Match case and whole cell options	Replacing globally without preview
Convert Range to Table	Enable sorting, filtering, and structured refs	Select range then Ctrl+T	Name your table, such as SurveyTbl	Confirm header row checkbox	Leaving blank rows inside table
Freeze Panes	Keep headers visible while scrolling	View > Freeze Panes > Freeze Top Row	Always freeze before validation review	Freeze based on active cell position	Freezing wrong row/column due to cursor location
Page Setup options	Prepare print/PDF output	Page Layout > Size/Orientation/Margins/Scale	Check preview before export	Print Area, Print Titles, Fit to Page	Printing full sheet with helper columns

Step-by-Step Practical Workflows

Workflow A: Survey CSV to Clean Engineering Table

flowchart TD
    A[Open survey CSV] --> B[Verify headers and units]
    B --> C[Convert range to Table]
    C --> D[Clean text with TRIM and TEXTSPLIT]
    D --> E[Check duplicates with COUNTIF]
    E --> F[Generate controlled code list with UNIQUE]
    F --> G[Apply rounding rules]
    G --> H[Export clean CSV for CAD or GIS]

    classDef input fill:#e3f2fd,stroke:#1565c0,stroke-width:1.5px,color:#0d47a1;
    classDef process fill:#fff8e1,stroke:#ef6c00,stroke-width:1.5px,color:#e65100;
    classDef decision fill:#ffebee,stroke:#c62828,stroke-width:1.5px,color:#8e0000;
    classDef output fill:#e8f5e9,stroke:#2e7d32,stroke-width:1.5px,color:#1b5e20;

    class A input;
    class B,C,D,E,F,G process;
    class H output;

1. Open CSV and verify delimiter, decimals, and column names.
2. Convert to Table and rename it, for example SurveyTbl.
3. Standardize PointID and Code with TRIM and TEXTSPLIT where needed.
4. Add duplicate flag using COUNTIF and resolve duplicates before further processing.
5. Build a unique code list using UNIQUE for QA.
6. Apply ROUND or MROUND in final output columns only.
7. Save clean output to CSV for downstream CAD/GIS use.

Workflow B: Room and Opening Schedule to Print-Ready Report

flowchart TD
    A[Create Room and Opening Tables] --> B[Build IDs with CONCAT]
    B --> C[Extract class parts using LEFT RIGHT MID]
    C --> D[Map rates/categories with INDEX MATCH]
    D --> E[Compute totals and rounding]
    E --> F[Freeze panes and apply filters]
    F --> G[Set print area titles and scaling]
    G --> H[Export PDF and share]

    classDef input fill:#e3f2fd,stroke:#1565c0,stroke-width:1.5px,color:#0d47a1;
    classDef process fill:#fff8e1,stroke:#ef6c00,stroke-width:1.5px,color:#e65100;
    classDef decision fill:#ffebee,stroke:#c62828,stroke-width:1.5px,color:#8e0000;
    classDef output fill:#e8f5e9,stroke:#2e7d32,stroke-width:1.5px,color:#1b5e20;

    class A input;
    class B,C,D,E,F,G process;
    class H output;

1. Create room and opening schedules as separate tables.
2. Use CONCAT to generate readable IDs, for example BLK1-RM-101.
3. Use LEFT, RIGHT, and MID to derive code segments where required.
4. Use INDEX + MATCH for category/rate mapping from a lookup table.
5. Calculate quantities, then apply CEILING/FLOOR/ROUND based on reporting rule.
6. Freeze top row and filter key fields for review.
7. Set print area, orientation, margins, and fit options before PDF export.

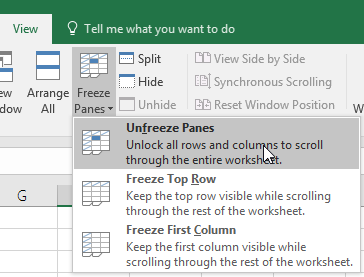

Freeze Panes example (Microsoft Support):

Must-Know Tool Paths

• Convert range to table: Insert > Table or Ctrl+T
• Filter and sort: Data > Filter and column dropdowns
• Duplicate check helper: formula column using COUNTIF
• Unique list: formula using UNIQUE
• Text cleanup: formulas TRIM, TEXTSPLIT, LEFT, RIGHT, MID, CONCAT
• Lookup mapping: formulas INDEX and MATCH
• Freeze panes: View > Freeze Panes
• Print area and scaling: Page Layout > Print Area, Scale to Fit, Print Titles
• Final preview and PDF: File > Print

Critical QA Checks

• Header names are clear and unit-aware, such as Easting_m and Elevation_m.
• No blank mandatory fields remain in key columns.
• Duplicate IDs are resolved before export.
• Lookup outputs are validated on sample rows.
• Rounding rule used in formulas matches reporting requirement.
• Freeze Panes is active for review sheets.
• Print preview is checked before sharing PDF.
